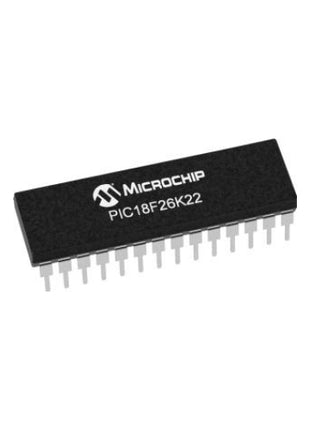

PIC18F Series 64 kB Flash 3.8 KB RAM 64 MHz 8-Bit Microcontroller - SPDIP-28

Description

COST PER PIECE

The PIC18F26K22-I/SP is a low-power and high performance 8-bit Microcontroller with XLP Technology. Available in through hole SPDIP-28 package.

Features:

  • High Performance RISC CPU:
    • C Compiler optimized architecture/instruction set
    • Data EEPROM to 1024 bytes
    • Linear program memory addressing to 64 Kbytes
    • Linear data memory addressing to 4 Kbytes
    • Up to 16 MIPS operation
    • 16-bit wide instructions, 8-bit wide data path
  • Extreme Low-Power Management with nanoWatt XLP™:
    • Sleep mode: 100 nA, typical
    • Watchdog Timer: 500 nA, typical
    • Timer1 Oscillator: 500 nA @ typical 32 kHz
  •  Flexible Oscillator Structure
    • Precision 16 MHz internal oscillator block
    • Four Crystal modes up to 64 MHz
    • Two external Clock modes up to 64 MHz
    • 4X Phase Lock Loop (PLL)
    • Secondary oscillator using Timer1 @ 32 kHz
    • Two-Speed Oscillator Start-up
  • Special Microcontroller Features:
    • Full 5.5V operation
    • Low voltage option available for 1.8V-3.6V operation
    • Self-reprogrammable under software control
    • Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
    • Programmable Brown-out Reset (BOR)
  • Analog Features:
    • Analog-to-Digital Converter (ADC) module : 10-bit Resolution
    • Programmable High/Low Voltage Detection (PLVD) module
    • Charge Time Measurement Unit (CTMU) for mTouch™ support
    • Analog comparator module
    • Voltage reference module
  • Peripheral Features:
    • 24/35 I/O pins and 1 input-only pin
    • Three external interrupt pins
    • Up to seven Timer modules
    • Up to two Capture/Compare/PWM (CCP) modules
    • Up to three Enhanced Capture/Compare/PWM (ECCP) modules
    • Two Master Synchronous Serial Port (MSSP) modules
    • Two Enhanced Universal Synchronous Asynchronous Receiver Transmitter modules (EUSART)
Product form

COST PER PIECE The PIC18F26K22-I/SP is a low-power and high performance 8-bit Microcontroller with XLP Technology. Available in through hole SPDIP-28 package. Features:... Read more

SKU: PIC18F26K22-I/SP

$5.03 Excl. VAT

    • 30 days warranty
    • High quality product
    • The best products for the best customers

    Description

    COST PER PIECE

    The PIC18F26K22-I/SP is a low-power and high performance 8-bit Microcontroller with XLP Technology. Available in through hole SPDIP-28 package.

    Features:

    • High Performance RISC CPU:
      • C Compiler optimized architecture/instruction set
      • Data EEPROM to 1024 bytes
      • Linear program memory addressing to 64 Kbytes
      • Linear data memory addressing to 4 Kbytes
      • Up to 16 MIPS operation
      • 16-bit wide instructions, 8-bit wide data path
    • Extreme Low-Power Management with nanoWatt XLP™:
      • Sleep mode: 100 nA, typical
      • Watchdog Timer: 500 nA, typical
      • Timer1 Oscillator: 500 nA @ typical 32 kHz
    •  Flexible Oscillator Structure
      • Precision 16 MHz internal oscillator block
      • Four Crystal modes up to 64 MHz
      • Two external Clock modes up to 64 MHz
      • 4X Phase Lock Loop (PLL)
      • Secondary oscillator using Timer1 @ 32 kHz
      • Two-Speed Oscillator Start-up
    • Special Microcontroller Features:
      • Full 5.5V operation
      • Low voltage option available for 1.8V-3.6V operation
      • Self-reprogrammable under software control
      • Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
      • Programmable Brown-out Reset (BOR)
    • Analog Features:
      • Analog-to-Digital Converter (ADC) module : 10-bit Resolution
      • Programmable High/Low Voltage Detection (PLVD) module
      • Charge Time Measurement Unit (CTMU) for mTouch™ support
      • Analog comparator module
      • Voltage reference module
    • Peripheral Features:
      • 24/35 I/O pins and 1 input-only pin
      • Three external interrupt pins
      • Up to seven Timer modules
      • Up to two Capture/Compare/PWM (CCP) modules
      • Up to three Enhanced Capture/Compare/PWM (ECCP) modules
      • Two Master Synchronous Serial Port (MSSP) modules
      • Two Enhanced Universal Synchronous Asynchronous Receiver Transmitter modules (EUSART)
